Tablet A3700 Setup

September 9, 2025

Description

How to set up the Tablet A3700

What's in this article?

Software PlanGrowth | Pro

The Tablet A3700 is a handheld payment tablet that takes all payment types and delivers email and text receipts. Optional cellular capability and battery allows for use as a pay at table or line-busting device. The Tablet A3700 connects to the Station L1400 as a flexible payment device.

What's in the box?

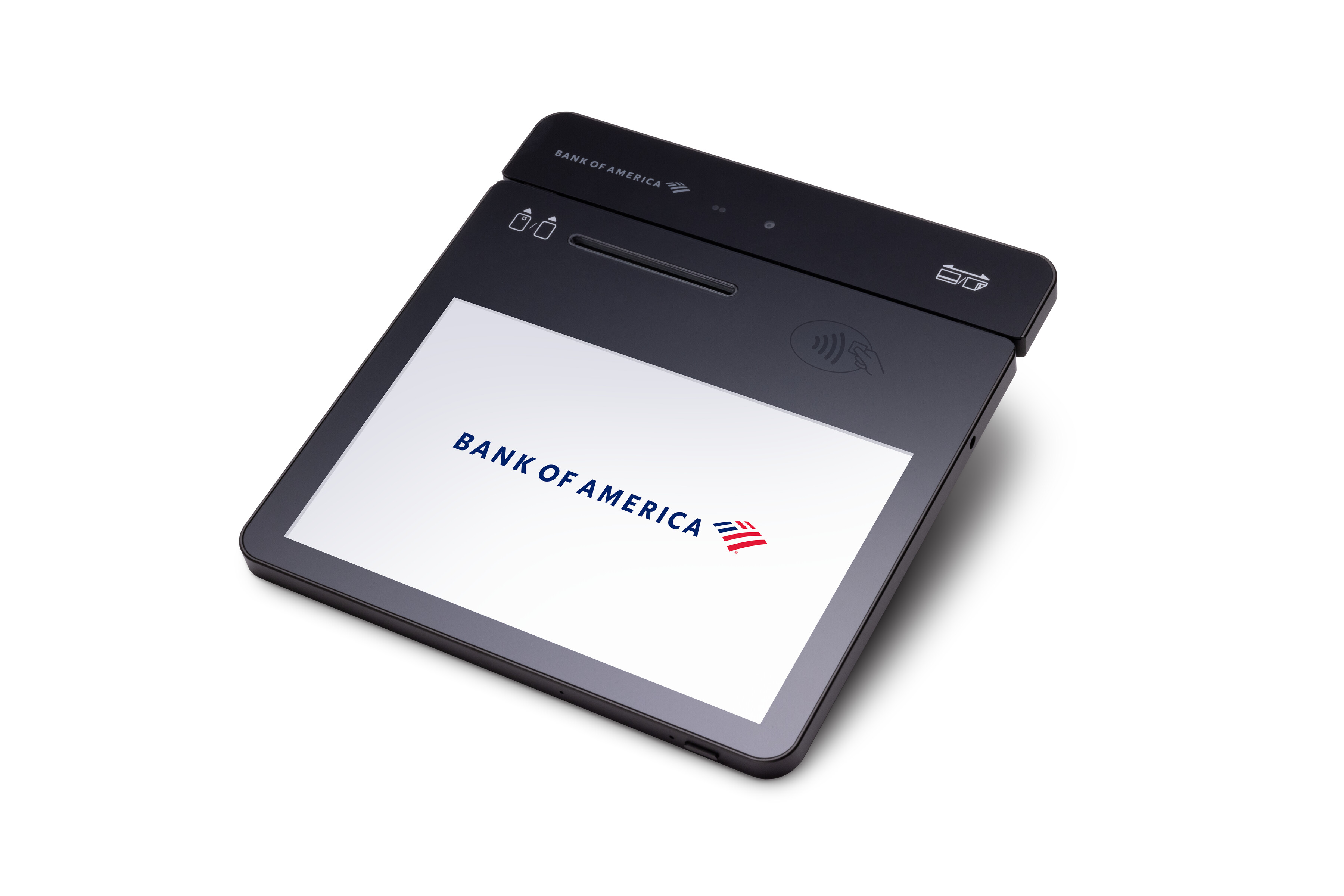

Your Tablet A3700 arrives with a power adapter, AC power cable, and screen cleaning cloth. Tablet A3700 front view

NOTE:
If you are using the Tablet as a payment device connected to the Station L1400, learn more about connecting the Tablet to the Station L1400 as a payment device

Power on

Press and hold Power button on the bottom right corner of the Tablet for three seconds. Power off by pressing the Power button until the shutdown menu appears, then tap Shutdown. The terminal will turn off after a few seconds.

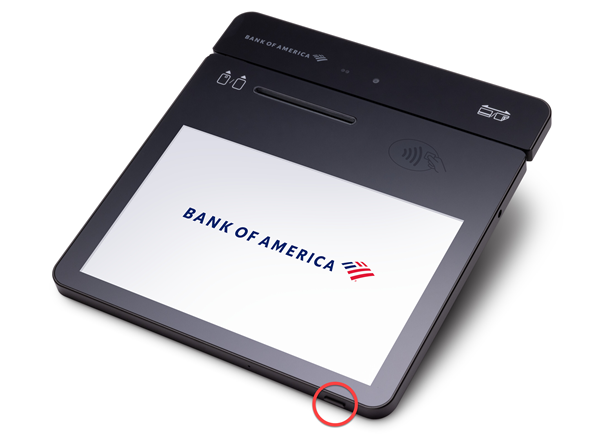

Tablet showing the location of the power button on bottom right edge

1  Connect to power

Recharge the Tablet battery by connecting the power cable to the USB-C device port located on the bottom of the Tablet. Then connect the power cable to the power adapter and plug into an AC outlet. The Tablet can also recharge when mounted on the Station L1400 using the magnetic pogo pins on the back of the Tablet. The Tablet A3700 has a non-replaceable, rechargeable battery.

2  Connecting to internet

Connect your Tablet to the internet through Wi-fi or optional cellular service.

Learn more about connecting to Wi-Fi.

3  Log in to the Point of Sale Solution App

Log in to the Point of Sale Solution App to begin taking payments.

NOTE:
If you will be using your Tablet as a payment device with a Station L1400, the Point of Sale Solution App will be located on the Station L1400 and the Tablet will be used by your customer to finalize payment.

Take a card payment

The Tablet A3700 accepts chipped card insertions or contactless taps. Your customers can also swipe their cards or use a mobile or digital wallet on a device to make a payment.

Smart Chip

Magnetic Stripe

Contactless

Mobile/Digital

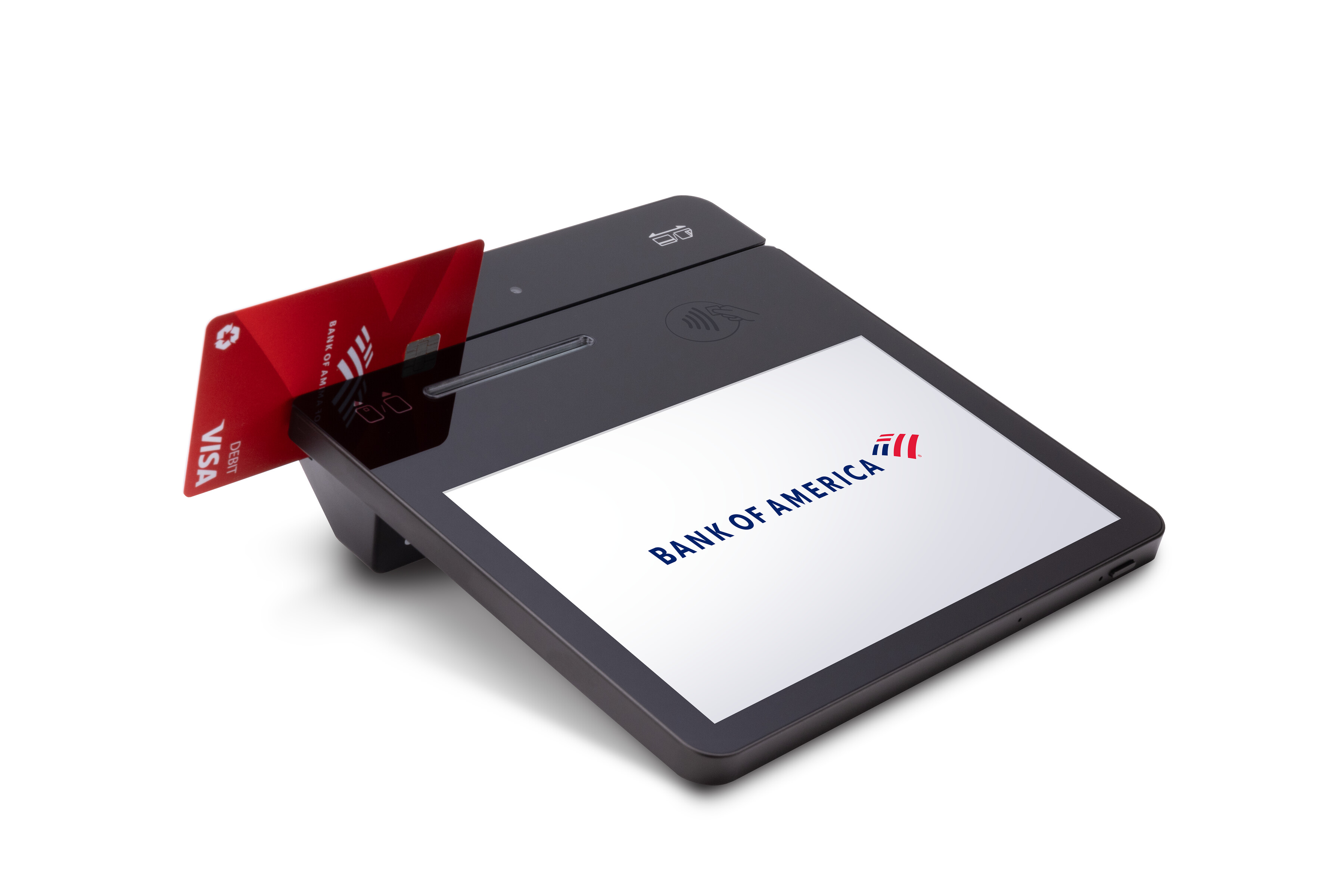

Insert the card chip-side first and chip face up. When prompted, remove the card.
take a card payment on the Tablet A3700 using smart chip

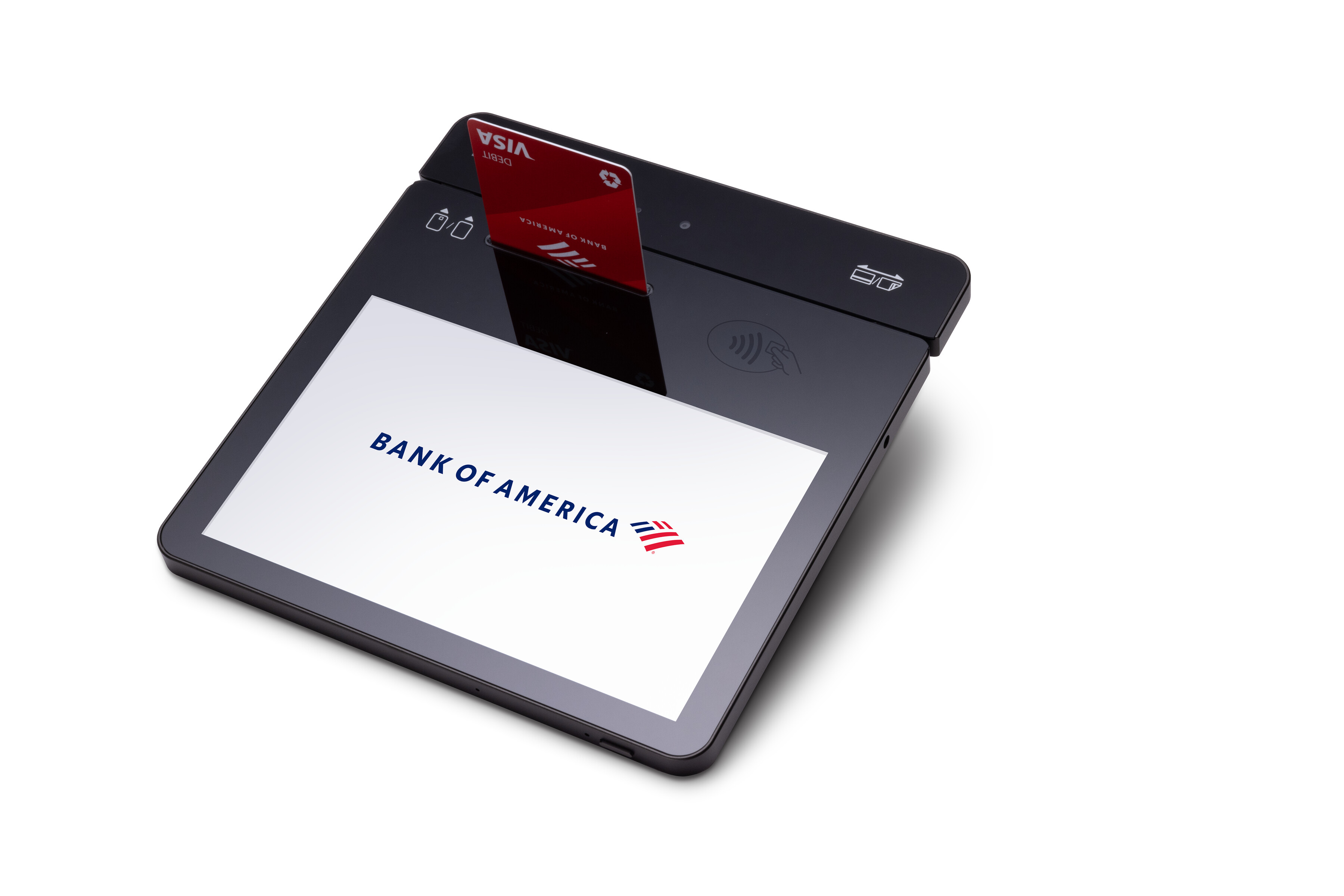

Swipe the card through the magnetic stripe reader with the strip toward the bottom of the terminal.
take a card payment on the Tablet A3700 using magnetic swipe

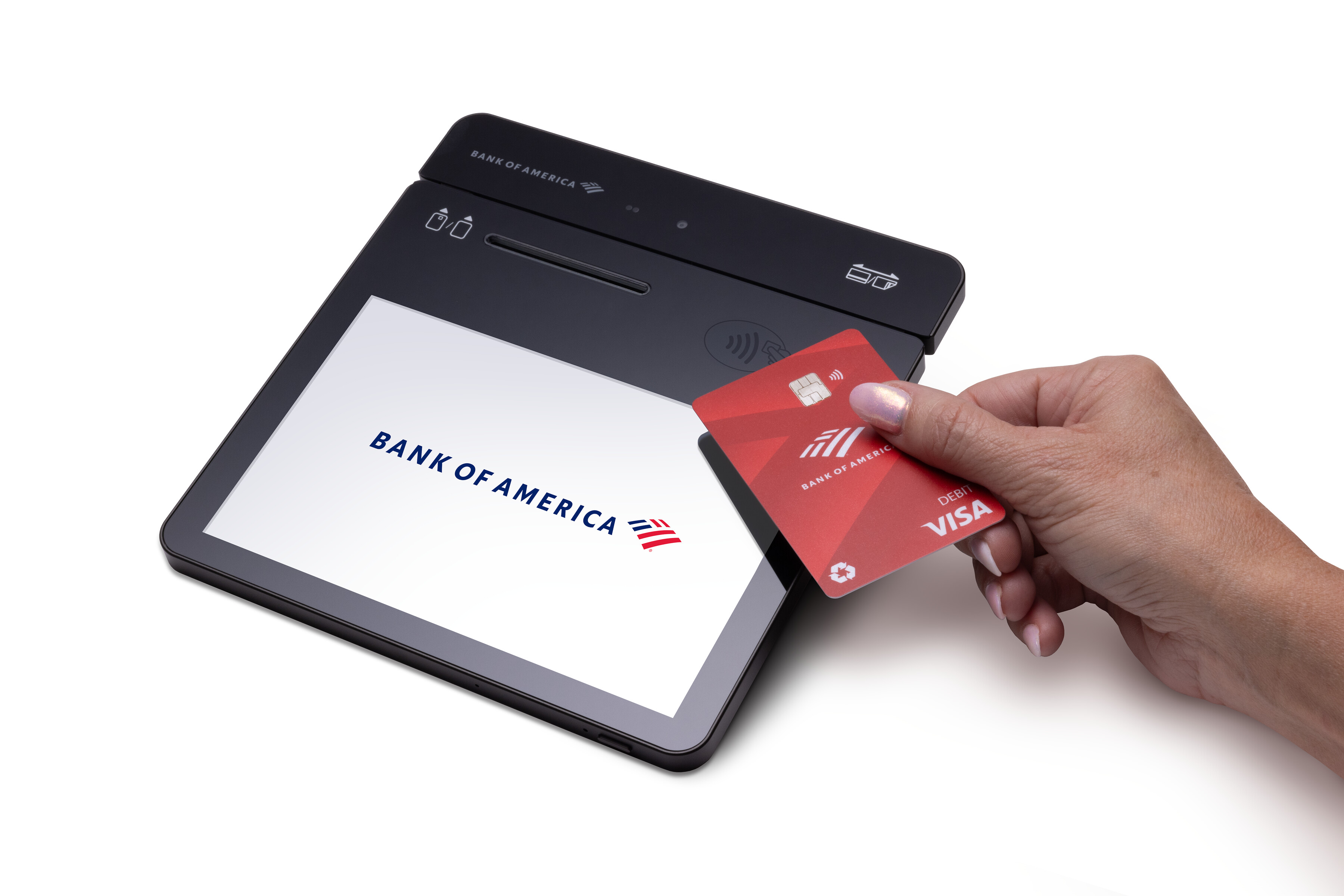

Tap or hold the card within two inches of the top of the terminal.
Tablet A3700 tap to pay

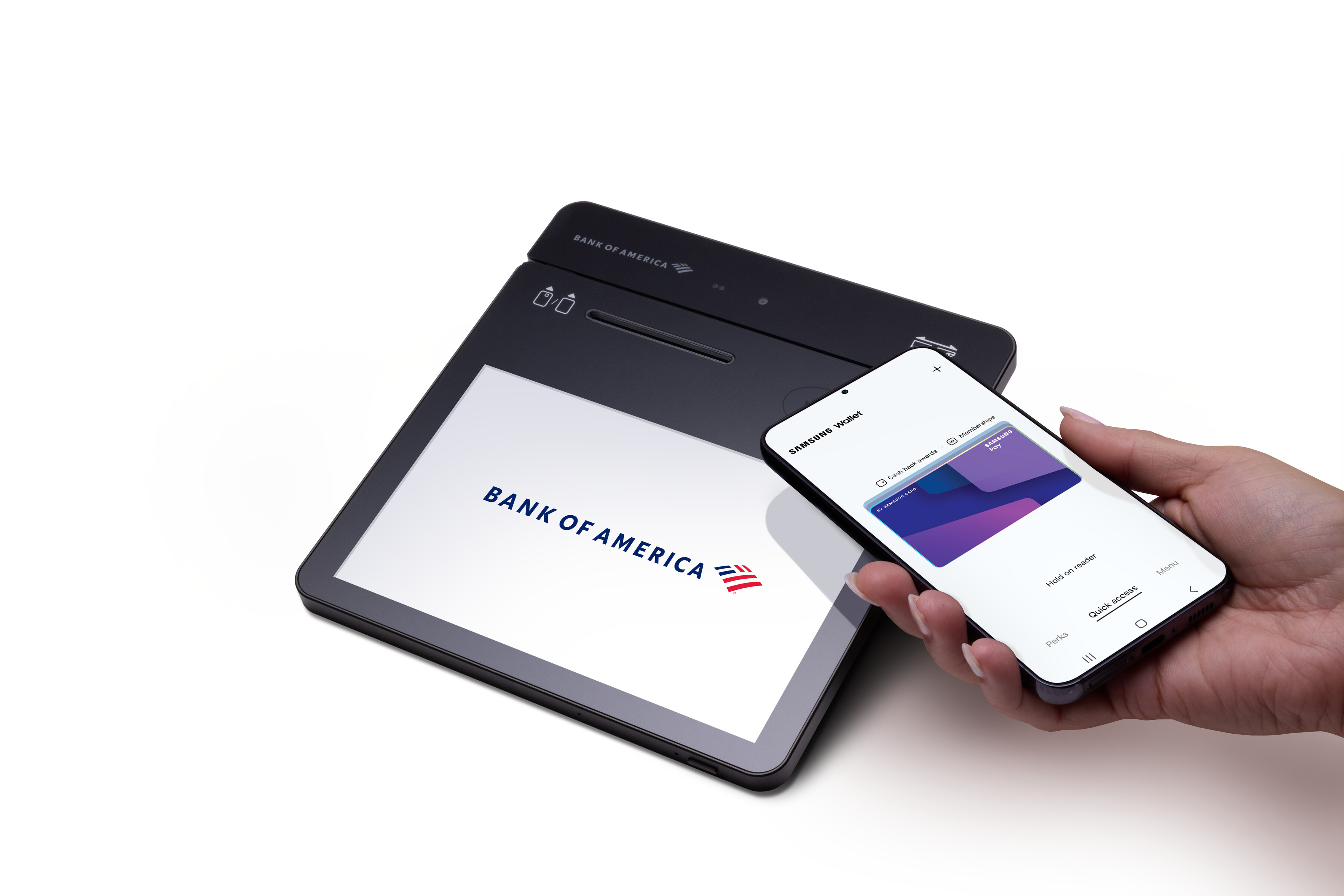

Hold the mobile phone/device within two inches of the top of the terminal. the customer will then need to approve the payment on their phone/device.

take a card payment on the Tablet A3700 using a mobile device


Terminal settings

You can adjust your terminal settings to your preference, including: terminal volume and key sounds, brightness, and timeout settings.

Terminal Care

For care guidelines, cleaning recommendations and other best practices, see Terminal Care.
