Device Features and Specifications
September 11, 2026
Description
Features and specifications for Bank of America devices
NOTE:
If you are using Point of Sale Solution, visit Payment Terminal Specifications for Point of Sale Solution and Peripheral Specifications for Point of Sale Solution.

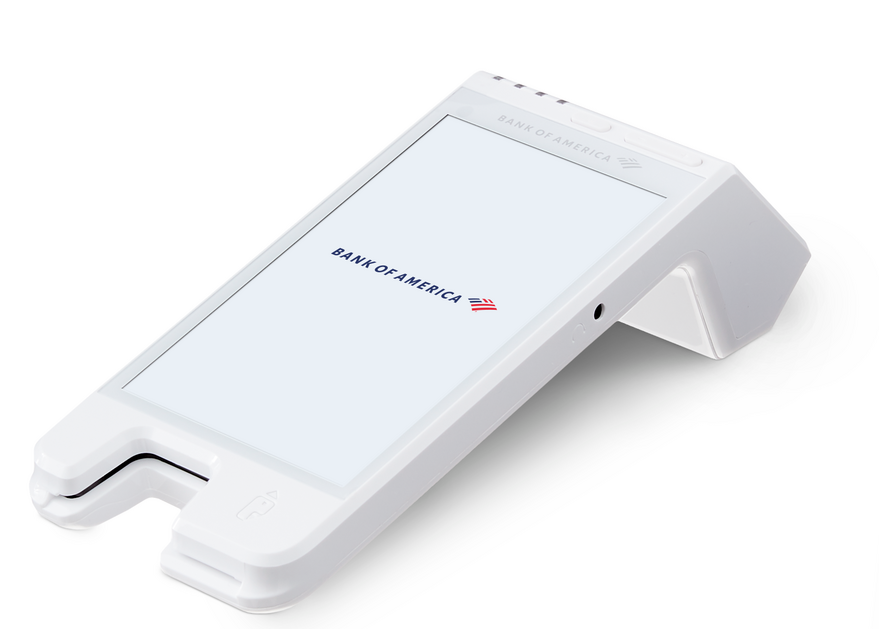

Portable A60 Terminal
The Portable A60 is a compact smart payment terminal that delivers the highest level of payment security and transactional integrity. The A60 can operate either as a powerful standalone mobile PIN pad or an in-store cordless terminal, supported by an intelligent printer base with auto-cutter. Learn how to set up your Portable A60 terminal.
The A60 is compatible with the following solutions:
Portable A60 specifications and descriptions| Specification | Description |
|---|
| Battery backup | No |
| Built-in barcode scanner | Yes |
| Camera | Dual cameras |
| Card types not supported | PIN debit / EBT with PIN |
| Communications | Wi-Fi, Bluetooth 4.0 (Ethernet available when purchasing the base) |
| Display | 5" (720 x 1280) IPS Multi touch Touchscreen Display |
| Dual screens (Q20) | No |
| Geolocational services | Yes |
| Integrated receipt printer | No |
| Memory | 2GB Ram + 1GB Flash - Micro SD up to 128GB |
| Operating system | Android |
| Payment methods | MagStripe, EMV Chip, NFC/Contactless |
| PCI - PTS compliance level | Level 5.x - Increased security for PIN transactions, and PCI compliance through April 2026 |
| PIN pad | Internal (on-screen) |
| Ports/slots | Dual SIM, 1x Type- C USB |
Size
(length x width x height) | 184.7 × 74.9 × 54.4mm
(7.3 x 3.0 x 2.1") |
| Receipts | Print/email. 2" thermal printer | 80mm Per Second with auto cutter |
| Tip capable | Yes |
| Weight | 11.2 oz (including battery) |

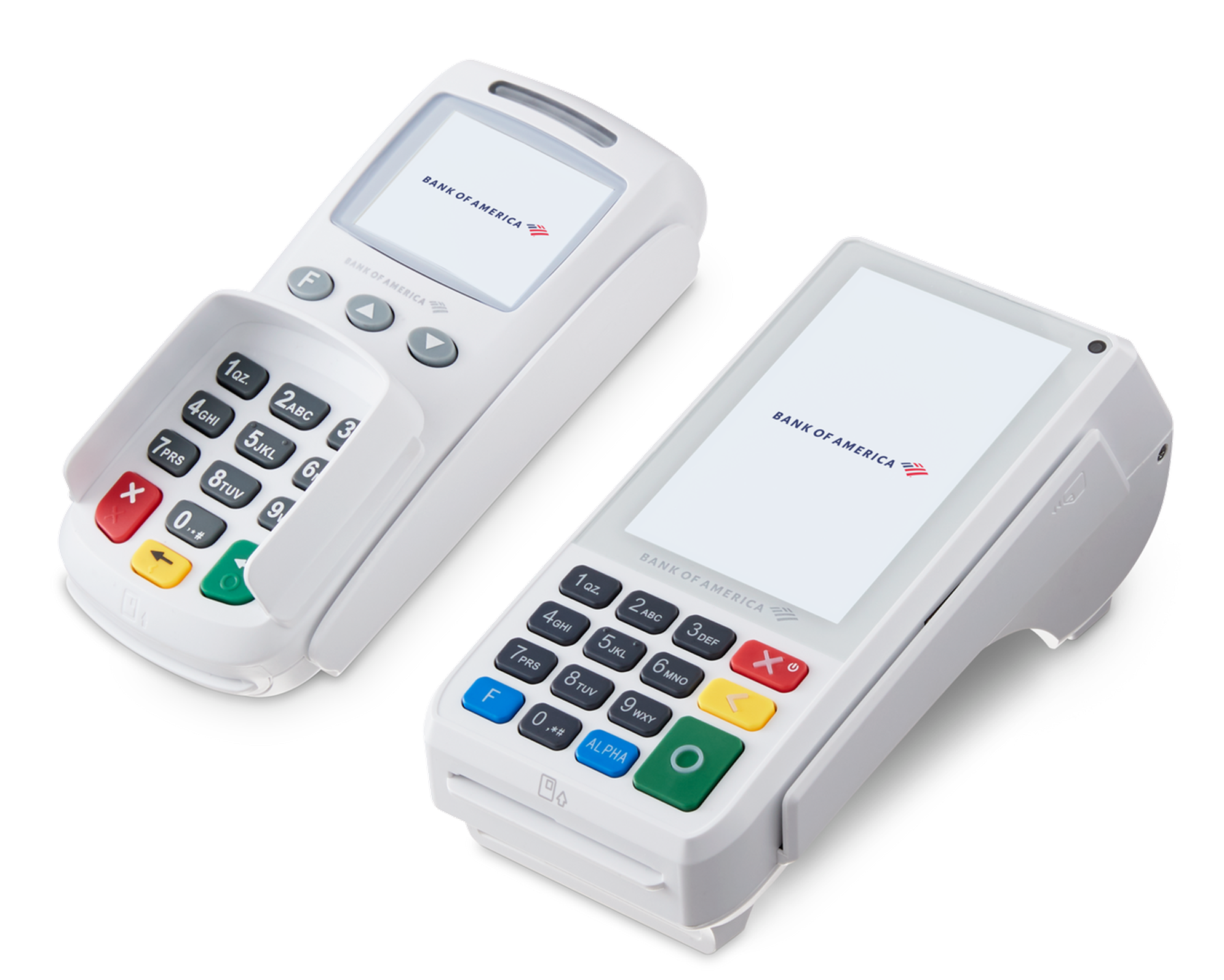

Countertop A80 and PIN Pad SP30
The Countertop A80 is a payment-only terminal that provides reliable, full connectivity with fast, secure payment processing and is compatible with the client-facing, external PIN Pad SP30. Learn how to set up your Countertop A80 and PIN Pad SP30.
The optional PIN Pad SP30 is ADA-compliant, featuring raised dot indicators on the number keys, a raised X for Cancel, raised O for Enter and a raised arrow for the Clear key. It can take chip, magnetic stripe and contactless payments. The PIN Pad SP30 works exclusively with the Countertop A80 terminal.
The Countertop A80 is compatible with our Basic Payment Solution.
A80 specifications and descriptions| Specification | Description |
|---|
| Battery backup | No |
| Built-in barcode scanner | No |
| Camera | No |
| Communications | Ethernet, Wi-Fi |
| Display | 4 Inches 800x400 pixel, capacitive touch, color display |
| Dual screens (Q20) | No |
| Geolocation services | Yes |
| Integrated receipt printer | Yes |
| Memory | 8GB eMMC + 1GB DDR3 |
| Operating system | Android |
| Payment methods | MagStripe, EMV Chip, NFC/Contactless |
| PCI - PTS compliance level | Level 5.x - Increased security for PIN transactions, and PCI compliance through April 2026 |
| PIN pad | Yes/Durable keys w/ backlighting |
| Ports/slots | Supports one Micro SD (TF card) up to 32GB |
Size
(length x width x height) | 180.3 × 83.8 × 81.3mm
(7.1 x 3.3 x 3.2") |
| Receipts | Thermal printer, no ribbon: 40mm, 30 lines/second
2 1/4 inch x 30 foot paper roll |
| Tip capable | Yes |
SP30 PIN Pad specifications and descriptions| Specification | Description |
|---|
| Communications | Ethernet |
| Connection cable | Approx. 9 ft. connection cable length for PIN Pad SP30 to A80 terminal. If a longer cable length is required, you can order one from PAX. |
| Cord length | 6 ft. |
| Display | 128 x 64 white backlit LCD |
| Memory | 16MB (8MB Flash, 8MB SDRAM) |
| Ports | RS232 or standard USB |
| Power | External power supply 5VDC, 500 mA |
| Screen | LCD white backlit |
| Security | PCI PTS 5.x |
Size
(length x width x height) | 168.9 × 83.3 × 46.0mm
(6.7 x 3.3 x 1.9") |
| Weight | 12.3 oz |

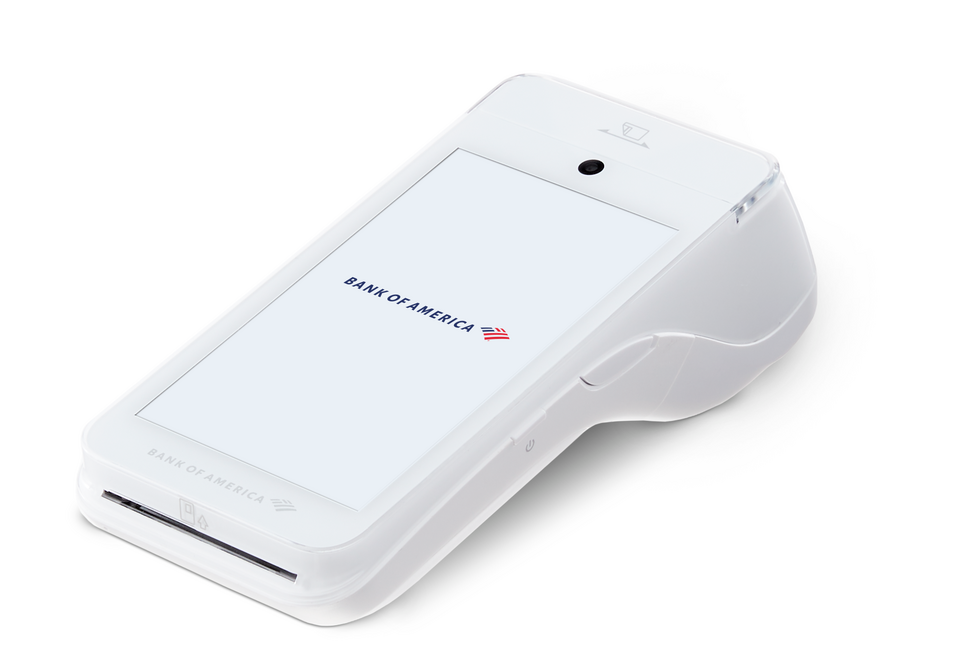

Portable A920
The Portable A920 delivers the power of an Android tablet and advanced payment terminal. Keep up in the most dynamic retail environment, taking payments and printing receipts at high speed on the go. The A920 can function as a payment only terminal, or it can integrate with one of Bank of America's point of sale solutions. Learn how to set up your Portable A920.
The A920 is compatible with the following solutions:
A920 specifications and descriptions>| Specification | Description |
|---|
| Battery backup | No |
| Built-in barcode scanner | Yes |
| Camera | Dual cameras |
| Card types not supported | PIN debit / EBT with PIN |
| Cellular service | Supported. The Portable A920 comes with a cellular SIM card. Cellular is required to enable the Portable A920's cellular communication functionality.
NOTE: Cellular Service is an optional value-added service which requires a per terminal monthly fee. To enable cellular service, contact us. |
| Communications | Bluetooth, Wi-Fi, 4G Cellular (Ethernet available when purchasing the base) |
| Display | 5 Inches (720 x 1280) IPS Touchscreen Display |
| Dual screens (Q20) | No |
| Geolocation services | Yes |
| Integrated receipt printer | Yes |
| Memory | 1GB DDR3 SDRAM |
| Operating system | Android |
| Payment methods | MagStripe, EMV Chip, NFC/Contactless |
| PCI - PTS compliance level | Level 5.x - Increased security for PIN transactions, and PCI compliance through April 2026 |
| PIN pad | Internal (on-screen) |
| Ports/slots | Dual SIM | 1 x Micro USB |
Size
(length x width x height) | 175.3 × 78.7 × 55.9mm
(6.9 x 3.1 x 2.2") |
| Receipts | 2" thermal printer | 80mm Per Second
2 1/4 inch x 30 foot paper roll |
| Tip capable | Yes |
| Weight | 16.0 oz
(1 lb.) |

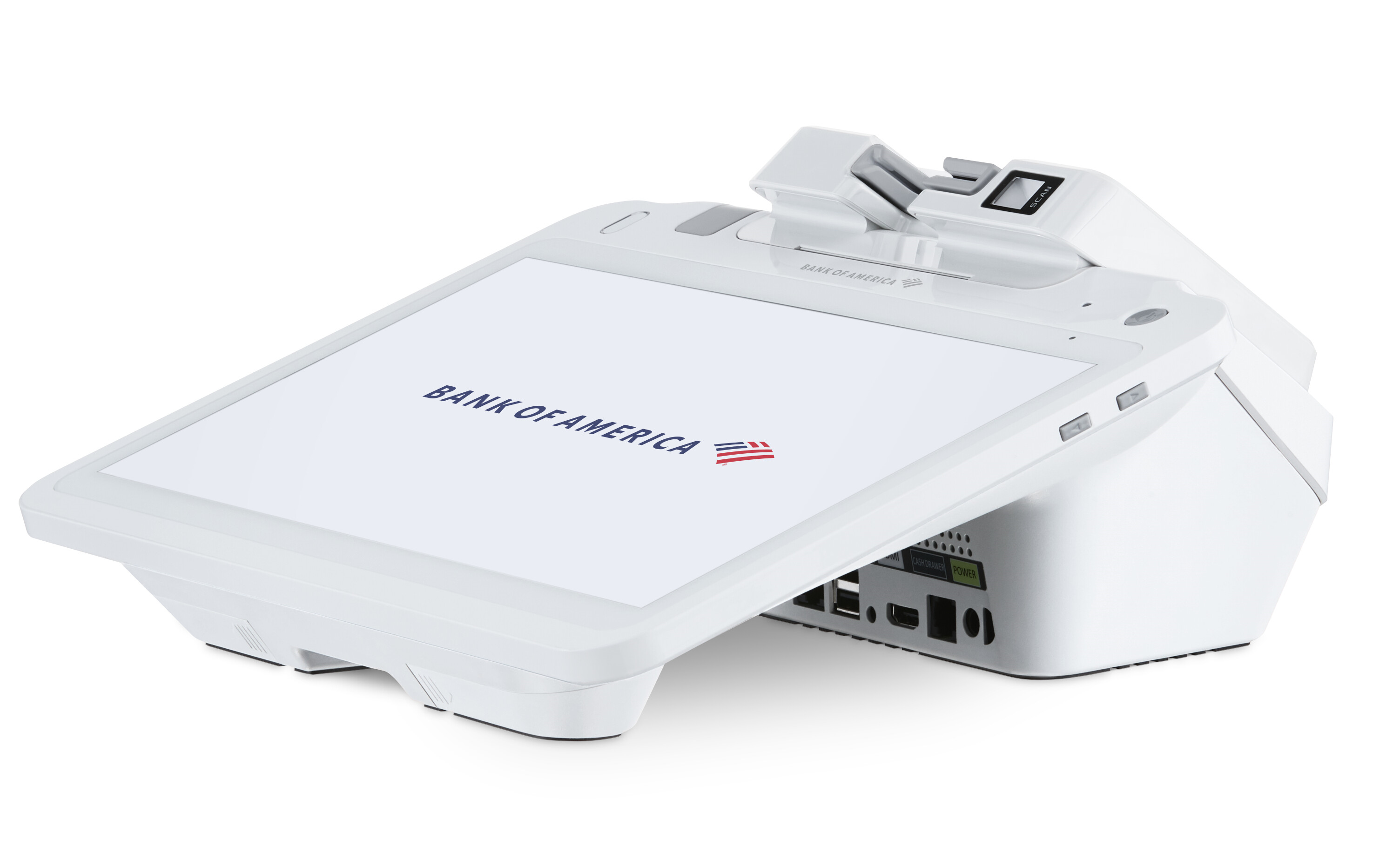

Smart Terminal E700
The Smart Terminal E700 is a full-featured point of sale terminal that is flexible enough to fit onto smaller retail countertops. Its sleek all-in-one design is packed with a wide range of features, including a hybrid card reader, built-in 3” thermal high speed printer, a customer-facing display and an automatic brightness sensor that provides excellent screen visibility day or night. Learn how to setup your Smart Terminal E700.
The E700 is compatible with the following solutions:
E700 specifications and descriptions| Specification | Description |
|---|
| Battery backup | 30 minutes |
| Built-in barcode scanner | No |
| Camera | Dual cameras |
| Card types not supported | PIN debit / EBT with PIN |
| Communications | Bluetooth, Wi-Fi, 4G Cellular |
| Display | 12.5 Inches (1920x1080) |
| Dual screens (Q20) | Yes |
| Geolocational services | Yes |
| Integrated receipt printer | Yes |
| Memory | 2GB DDR + 16 GB eMMC |
| Operating system | Android |
| Payment methods | MagStripe, EMV Chip, NFC/Contactless |
| PCI - PTS compliance level | Level 5.x - Increased security for PIN transactions, and PCI compliance through April 2026 |
| PIN pad | Client facing screen |
| Ports/slots | Power port, USB A ports x4, USB C port, HDMI, LAN, cash drawer port, serial port, audio jack |
| Receipts | Print/email, no receipt, and gift receipts
Receipt paper roll size 3.14" |
Size
(length x width x height) | 309.9 × 307.3 × 139.7mm
(12.2 x 12.1 x 5.5") |
| Tip capable | Yes |

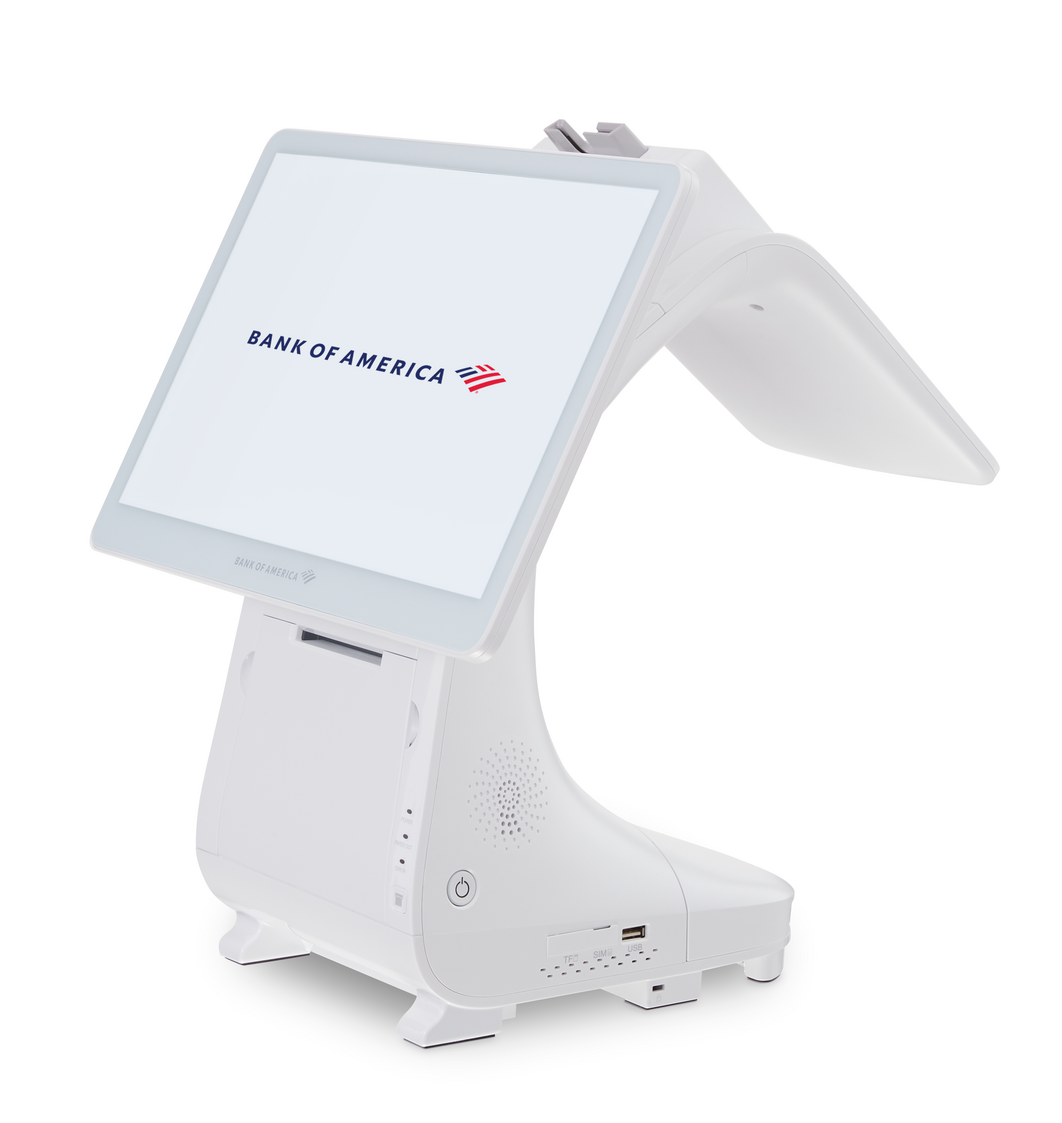

Smart Register E800
The Smart Register E800 , with its Android OS and large user and customer facing displays, is a powerful interface for managing business as well as taking payments. Learn how to set up your Smart Register E800.
The E800 is compatible with the following solutions:
Update this content for Accordion 1
E800 specifications and descriptions| Specification | Description |
|---|
| Battery backup | 30 minutes |
| Built-in barcode scanner | Yes |
| Camera | Dual cameras |
| Card types not supported | PIN debit / EBT with PIN |
| Communications | Ethernet, Bluetooth, Wi-Fi, 4G Cellular |
| Display | 15.6 Inch (1920 x 1080 resolution) landscape merchant facing 8 Inch (1280 x 800) landscape customer facing - both multi touch capacitive touch screen |
| Dual screens (Q20) | Yes |
| Geolocational services | Yes |
| Integrated receipt printer | Yes |
| Memory | 2GB RAM + 16GB Flash Memory |
| Operating system | Android |
| Payment methods | MagStripe, EMV Chip, NFC/Contactless |
| PCI - PTS compliance level | Level 5.x - Increased security for PIN transactions, and PCI compliance through April 2026 |
| PIN pad | Client facing screen |
| Ports/slots | Micro-USB port, 5 USP ports, 3 Network ports (1 WAN port, 2 LAN ports) cash drawer, sieral port, audio jack |
| Receipts | 3 inch high-speed thermal printer with auto-cutter, print, email, no receipt and gift receipt
Printing speed 150mm/s, paper width 80mm, diameter 80mm
Receipt paper roll size 3.14" |
Size
(length x width x height) | 378.5 × 378.5 × 408.9mm
(14.9 x 14.9 x 16.1") |
| Tip capable | Yes |

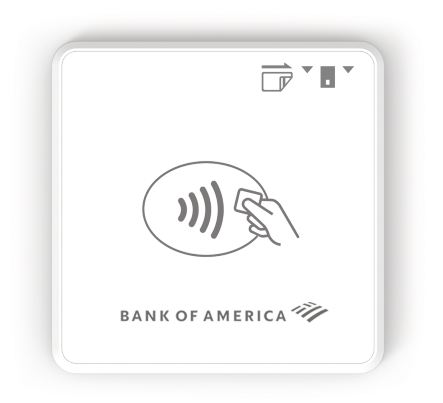

Mobile Card Reader D135
The Mobile Card Reader D135 is a Bluetooth® card reader that connects directly to a mobile phone or tablet, enabling secure payment acceptance. It is compatible with our Mobile Point of Sale solution and is ideal for restaurants, retailers, personal service providers, and mobile businesses. Learn how to get setup and activate your Mobile Point of Sale.
The D135 is also compatible with our Point of Sale Solution when used with the Station L1400.
D135 specifications and descriptions| Specification | Description |
|---|
| Accessories | USB-A to USB-C charging cable
Optional charging base |
| Communication | Bluetooth |
| PCI - PTS compliance level | Level 5.x |
| Power | Fully charged in 2.5 hours with no use during that time.
Uses USB-A to USB-C charging cable.
Single charge life is dependent on storage conditions, temperature, humidity, and charging habits.
Estimated usage for a single charge:
· Continuous transactions: 6 – 8 hours
· Standby: 46 hours
· Sleep or powered off: 53 hours |
Size
(length x width x height) | 12.7 x 66.0 x 66.0mm
(0.5 x 2.6 x 2.6") |
| Weight | 1.02 kg
(2.24 oz.) |

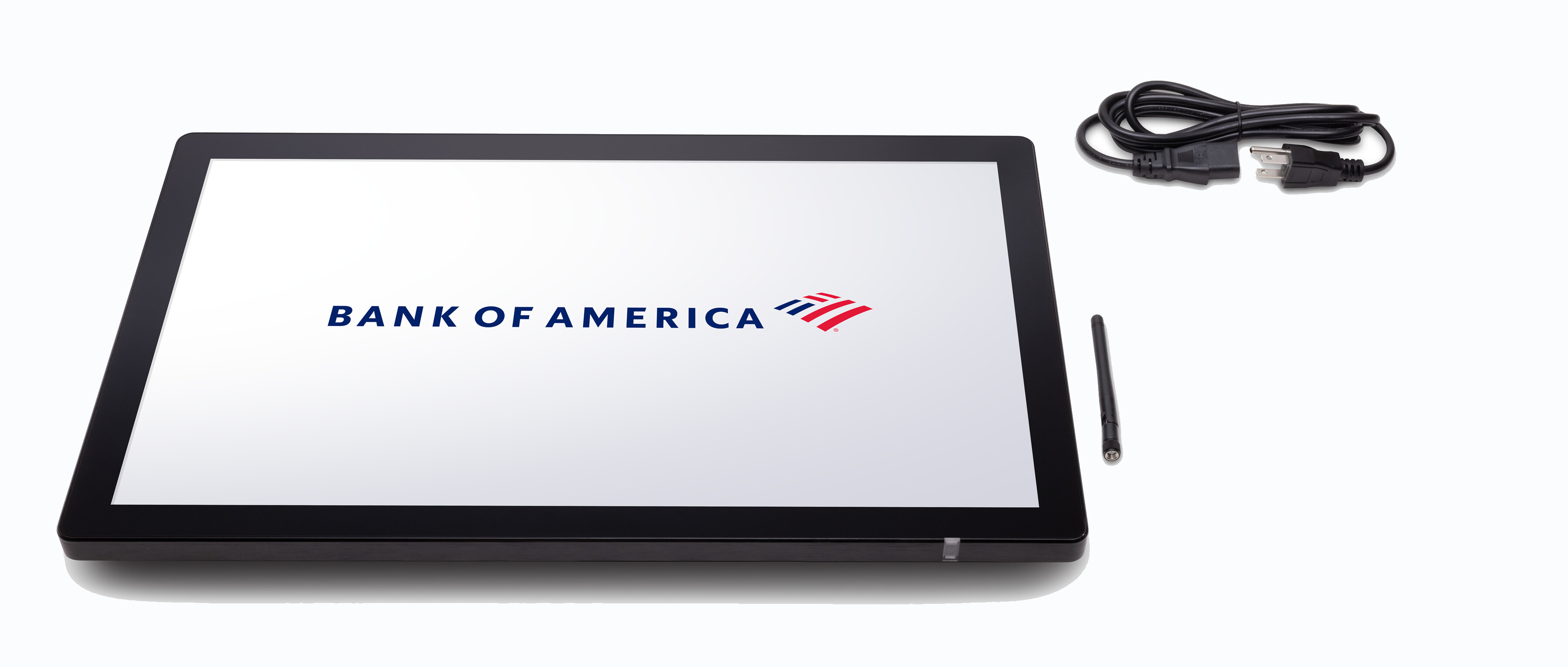

Kitchen Display Solution (KDS)
An optional add-on to your Restaurant Solution, the Kitchen Display Solution includes two kitchen display screen model options: the K2160 and the K2220. Learn how to set up your Kitchen Display Solution for use with Restaurant Solution.
The KDS is also compatible with our Point of Sale Solution when using the Pro software plan.
| Specification | Description |
|---|
Kitchen Display Solution specifications and descriptions | Accessories | Power cable, external antenna, and backup screws. Optional table or wall mounts available. |
| Communication | LAN 100M/POE (optional)/WiFi 2.4 GHZ/Bluetooth 5.0 |
| Certification | IP55/FCC/IC/UL/BQB/CE/UKCA/RoHS |
| Display | K2160 - 16"
K2220 - 22"
Multi-touch, anti-fingerprint coating, supports wet and gloved hands |
| Power | 100-240V~50/50Hz 2A, built-in power, output 12V DC, 3.0A |
Size
(length x width x height) | K2160 - 376.4 x 236.4 x 17mm (14.8 x 9.3 x .66")
K2220 - 508.4 x 305 x 17mm (20 x 12 x .66") |
| Weight | K2160 - 2.6 kg (5.7 lbs.)
K2220 - 4.65 kg (10.3 lbs.) |
