Payment Terminal Specifications for Point of Sale Solution
August 14, 2026
Description
Specifications for payment terminals used with Point of Sale Solution
Software Plan: Starter | Growth | Pro
Hybrid A800
The Hybrid A800 supports cellular service and can be used as a countertop device or as a mobile solution. The optional PIN Pad A35 is available for use as a PIN entry device. Learn how to set up your Hybrid A800
The Hybrid A800 is also compatible with Basic Payment Solution - Medical.
A800 specifications and descriptions| Specification | Description |
|---|
| Accessories | AC power adapter and USB-C cable
Ethernet cable
Communication Hub A800 when ordered with PIN Pad A35
Optional: Charging base |
| Cameras | 2MP front-facing | 5MP rear-facing |
| Cellular | 4G |
| Certifications | PCI PTS 6.x SRED | EMV L1/L2 | EMV CL L1 | Mastercard contactless |Visa payWave | Amex | D-PAS | qUICS | Interac Flash | CE | FCC | IC | UL | 3C
|
| Communications | Wi-Fi® 2.4GHz & 5GHz | Bluetooth®5.0
Optional: Ethernet via Communication Hub |
| Display | 5.7-inch capacitive touchscreen, 720 x 1440 pixels |
| Power | Input: 100-240V AC, 50Hz/60Hz | Output: 5.0V DC, 3.0A
Battery: 2300mAh / 7.2V |
| Printer | Paper roll: 40mm outer diameter |
Size
(length x width x height) | 188 x 66 x 79mm
(7.4 x 2.6 x 3.1") |
| Weight | 467g (16.47oz) |

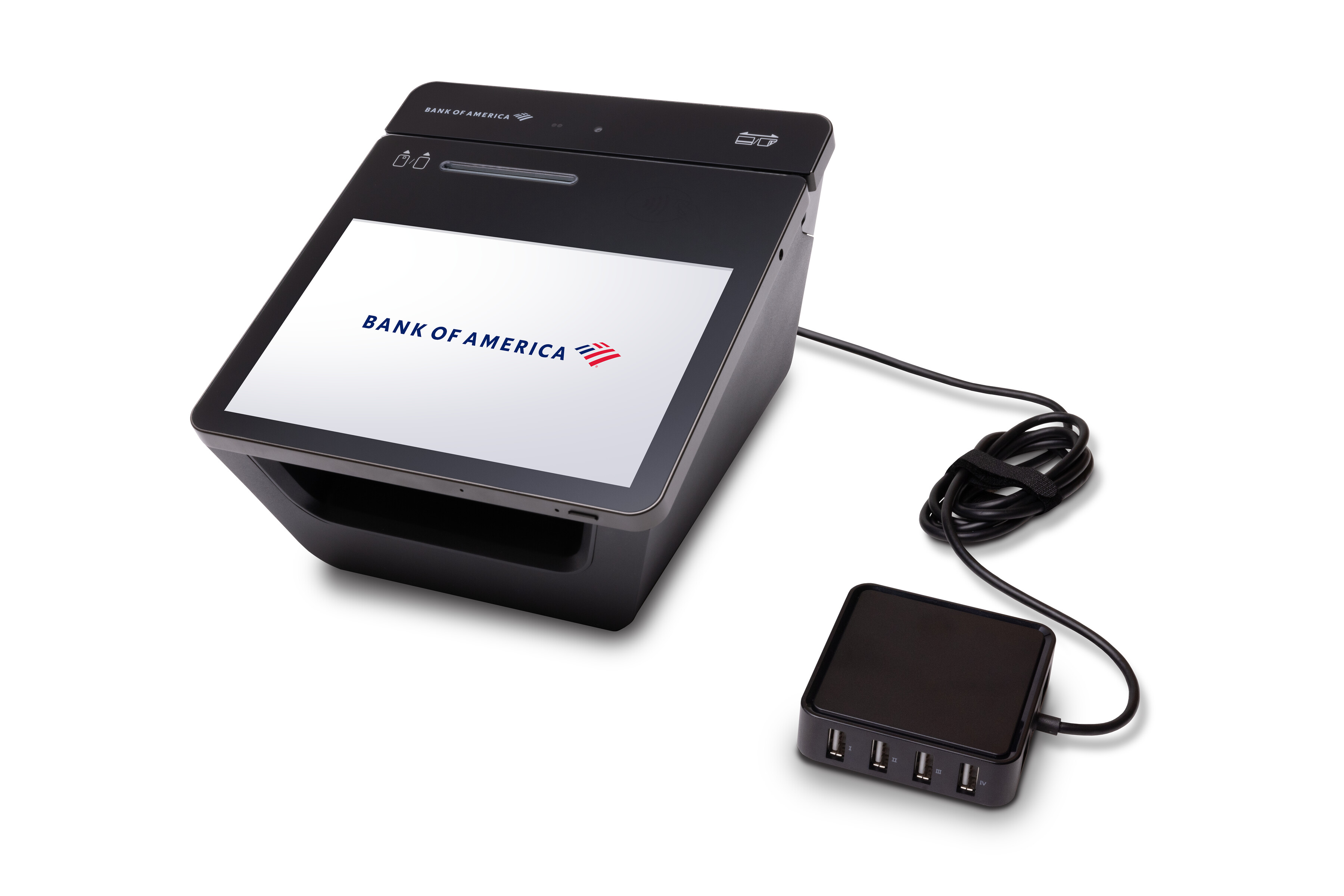

Mini Station A3700P
The Mini Station A3700P is an all-in-one terminal that combines the benefits of a high-performance tablet with an integrated thermal printer. Unique design includes a swivel base for the the sales clerk to move the screen to the customer when completing a payment. Optional cellular capability allows it to be used in a mobile environment as well. Learn how to set up your Mini Station A3700P.
A3700P specifications and descriptions| Specification | Description |
|---|
| Accessories | AC power adapter and power cable
Swivel base
Communications Hub L1400/A3700P (included)
|
| Camera | 5MP front-facing, fixed-focus |
| Cellular | 4G / 3G / GPRS |
| Certifications | PCI PTS 6.x SRED | EMV L1 & L2 | EMV contactless L1 | Visa payWave | MasterCard Contactless | Amex ExpressPay | D-PAS | Interact Flash | J/Speedy MasterCard TQM | CE | RoHS | ATEX | FCC | UL | BQB | PTCRB
|
| Communications | Wi-Fi® 2.4GHz / 5GHz | Bluetooth® 5.0
Optional: Ethernet via Communication Hub L1400/A3700P |
| Display | 7-inch 1280 × 800 pixel IPS LCD, multi-touch, anti-fingerprint coating |
| Power | Input: 100 - 240V AC, 1.5A | Output: 65W max |
Battery: Li-ion polymer 3.7V / 3720mAh |
| Printer | Paper Roll: 80mm width, 80mm diameter
Print Speed: 220mm/s
Auto-cutting |
Size
(length x width x height) | 182 × 176.4 × 121.7mm
(7.2 x 6.9 x 4.8")
|
| Weight | 1.6kg (3.5lbs) |
Pocket A6630
The Pocket A6630 is a compact, Wi-Fi and cellular-capable payment device that runs on battery to allow for true mobility while taking all payment types and delivering email and text receipts. The Pocket A6630 includes a scanner on the back of the device. To provide a printed receipt, you will need an external printer. Otherwise, receipts can be delivered via text or email through the Point of Sale app. Learn how to set up your Pocket A6630.
A6630 specifications and descriptions| Specification | Description |
|---|
| Accessories | AC power adapter
USB-C cable |
| Cameras | 2MP front-facing | 5MP rear-facing | 0.3MP barcode (1D/2D scanning) |
| Cellular | 4G |
| Certifications | PCI PTS 6.x SRED | EMV contactless L1 | EMV L1 & L2 | Mastercard Paypass | Visa Paywave | AMEX Expresspay | Discover D-PAS | QUICS | Interac Flash | UL | FCC | IC | CE | BQB | TQM | RoHS
|
| Communications | Wi-Fi® 2.4/5GHz | Bluetooth® 4G |
| Displays | 6.5-inch 1600 x 720 pixel IPS color screen |
| Power | Input: 5.0V, 3.0A/9.0V, 2.0A/12.0V, 1.5A | Battery: 3.8V/ 6000mAh |
| Printer | No. Works with optional external printer. |
Size
(length x width x height) | 173.8 x 80.2 x 17.4mm
(6.8 x 3.2 x 0.7") |
| Weight | 305g (10.7oz) |
Station L1400
The Station L1400 is a full size point of sale device featuring a large 14" display. Using the Communication Hub L1400/A3700P, it can pair with multiple devices and peripherals to accept payments easily. The Station L1400 requires a separate device (Tablet A3700, Card Reader D135, Hybrid A800, or PIN Pad A35) to take card payments. Learn how to set up your Station L1400.
L1400 specifications and descriptions| Specification | Description |
|---|
| Accessories | AC power adapter and power cable
Mounting plate
Communication Hub |
| Camera | 5MP front-facing, autofocus |
| Cellular | No |
| Certifications | Certification is based on payment device
|
| Communications | Wi-Fi® 2.4/5GHz | Bluetooth® 5.0 |
| Display | 14-inch 1920 x 1080 pixels IPS FHD touch screen display |
| Power | Input: 100 - 240V AC, 1.6A | Output: 12V DC/ 4.0A |
| Printer | No |
Size
(length x width x height) | 337 x 267.8 x 165.2mm
(13.2 x 10.5 x 6.5") |
| Weight | 2.58kg (5.7lbs) |

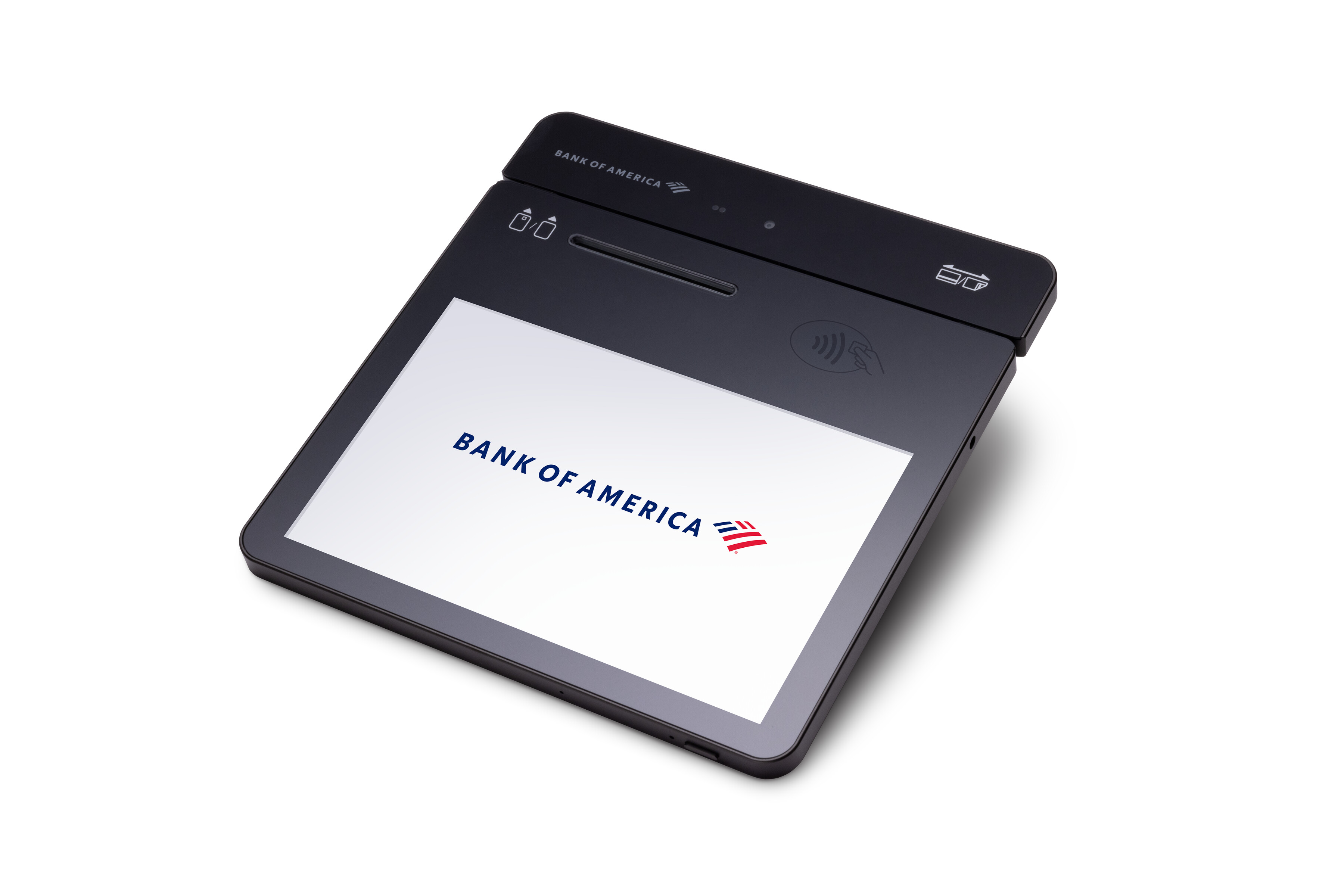

Tablet A3700
The Tablet A3700 is a handheld payment tablet that takes all payment types and delivers email and text receipts. Optional cellular capability and battery allows for use as a pay at table or line-busting device. The Tablet A3700 connects to the Station L1400 as a flexible payment device. Learn how to set up your Tablet A3700.
A3700 specifications and descriptions| Specification | Description |
|---|
| Accessories | AC power adapter and cable |
| Camera | 5MP front-facing |
| Cellular | 4G |
| Certifications | PCI PTS 6.x SRED | EMV L1 & L2 | EMV contactless L1 | Visa payWave MasterCard contactless | Amex ExpressPay | D-PAS | Interact flash | J/Speedy | MasterCard TQM CE | RoHS | ATEX | FCC | UL | BQB | PTCRB
|
| Communications | Wi-Fi® 2.4GHz/5GHz | Bluetooth® 5.0 |
| Display | 7-inch 1280 x 800 pixels IPS HD touch screen display |
| Power | Input: max 18W 5V DC, 2.0A | Battery: 3720mAh/3.7V |
| Printer | No. Text and email receipt capable. |
Size
(length x width x height) | 187 x 176.4 x 47.9mm
(7.4 x 6.9 x 1.9") |
| Weight | 787g (1.7lbs) |
